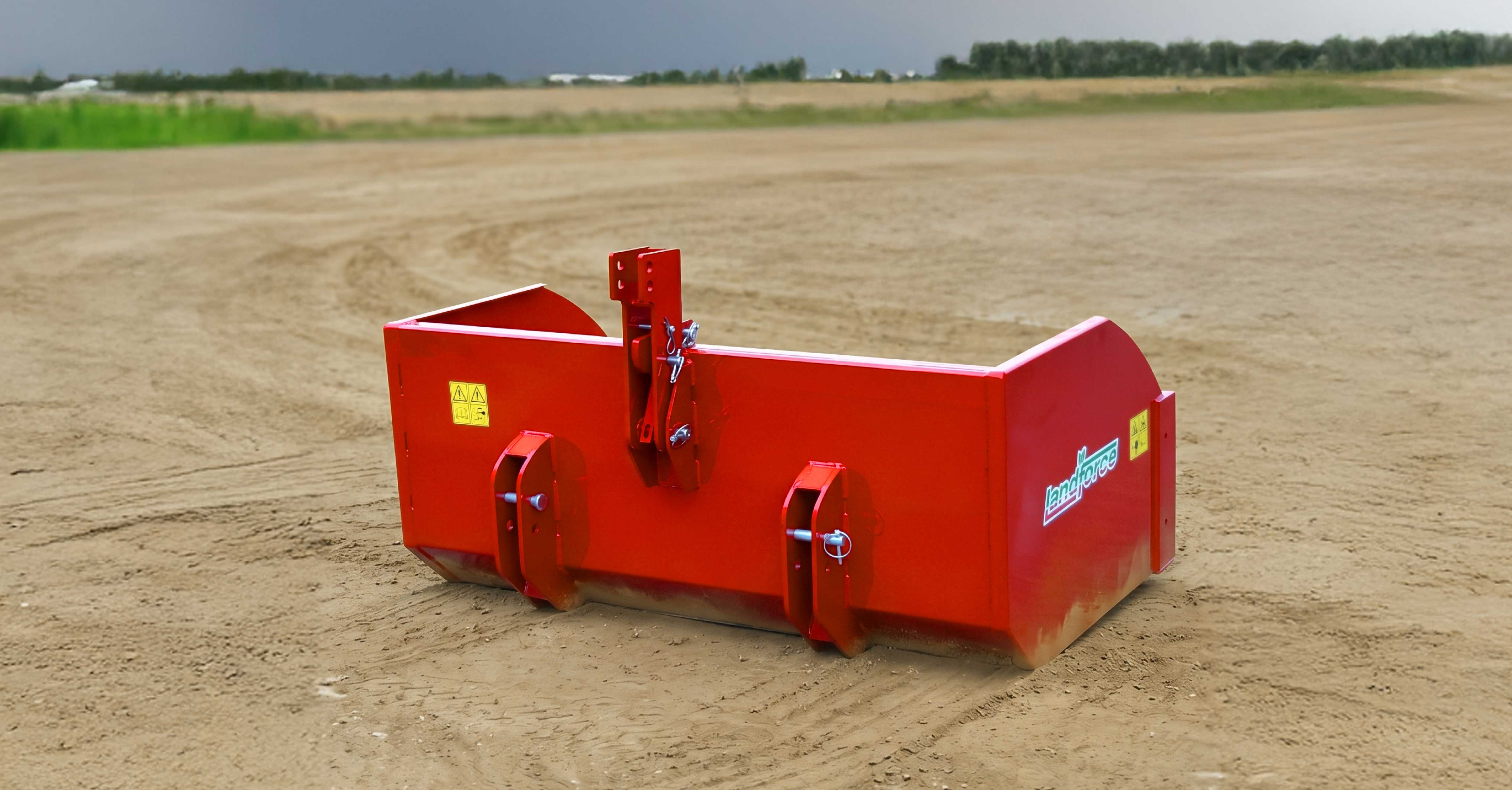

The Landforce Tipping Box Mechanical is designed for easy loading and manual tipping of farm materials. Its compact and sturdy design ensures reliable performance and efficient handling in all field conditions.
Supports CAT-I and CAT-II hitch systems and operates with tractors starting from 20 HP and above for versatile field use.
Show More
Built with a durable structure featuring 800 mm working depth, 600 mm working height, and compact overall dimensions for stable operation.
Show More
Available in 1200 mm to 2000 mm working widths to suit different farming and utility applications.
Show More
Designed to handle up to 1000 kg load capacity for efficient material transportation and handling.
Show More| Model | Unit | LFTBM120 | LFTBM140 | LFTBM160 | LFTBM180 | LFTBM200 |
| Load Capacity | kg | 1000 | ||||
| Working width | mm | 1200 | 1400 | 1600 | 1800 | 2000 |
| Working Depth | mm | 800 | ||||
| Working Height | mm | 600 | ||||
| Overall Width | mm | 1235 | 1435 | 1635 | 1835 | 2035 |
| Overall Length | mm | 995 | ||||
| Overall Height | mm | 810 | ||||
| Hitch Category | CAT-I | CAT-II | ||||
| Power Req. | hp | Above 20 | 35 | 45 & Above | ||
| Weight Approx | kg | 140 | 150 | 160 | 180 | 200 |
