Home / Haulage / / Tipping Box Hydraulic

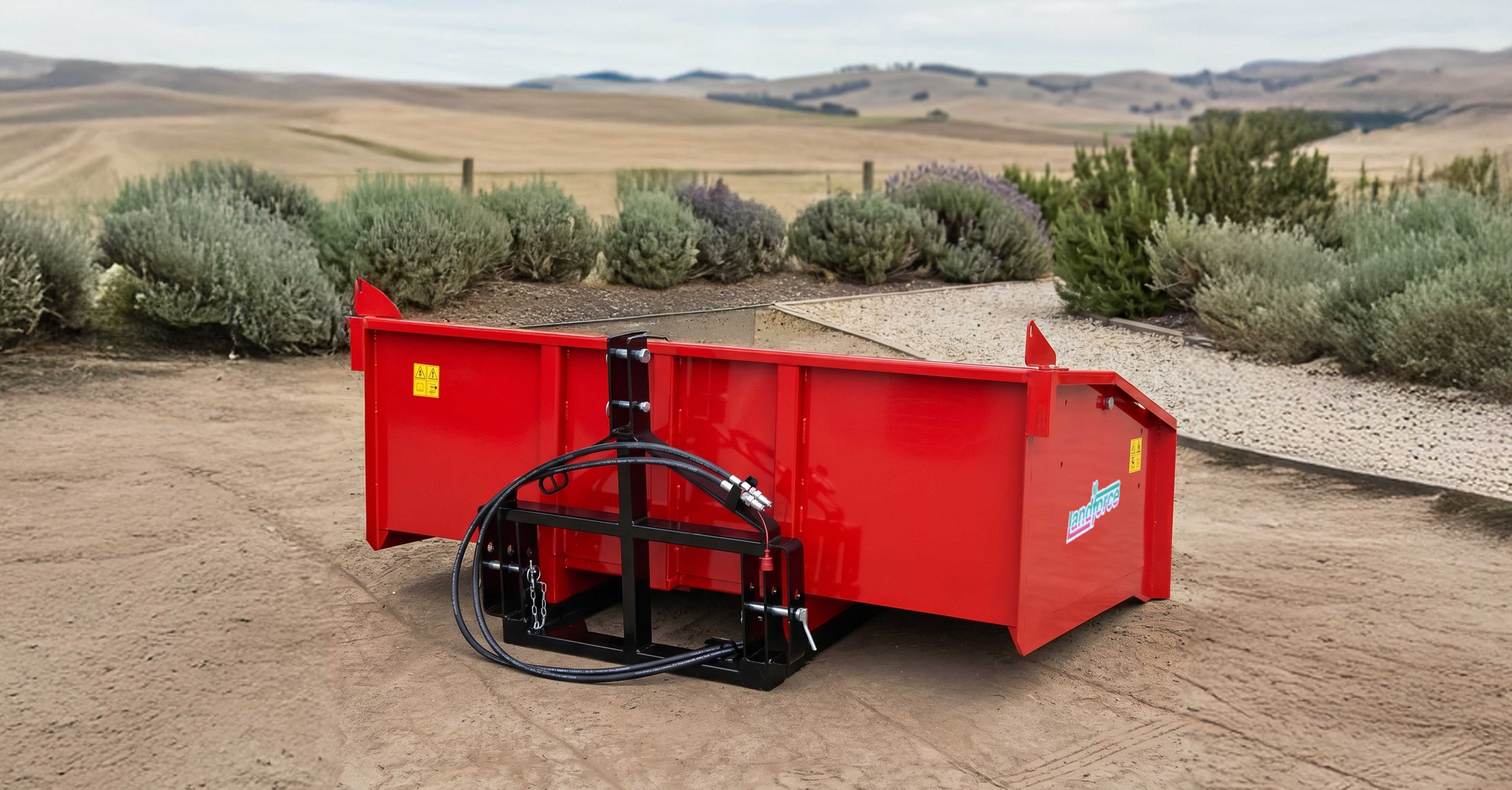

The Landforce Tipping Box Hydraulic provides effortless unloading with its smooth hydraulic lifting system. Built with a strong frame and durable body, it ensures efficient material handling and long-lasting performance.
Supports CAT-I & CAT-II hitch categories and operates with tractors above 45 HP for reliable field performance.
Show More
Equipped with a double acting hydraulic cylinder with 3-ton cylinder capacity for smooth and efficient tipping performance.
Show More
Available in 1600 mm to 2200 mm working widths to suit different agricultural and utility applications.
Show More
Designed with a 1000 kg load capacity for efficient transportation and material handling operations.
Show More| Model | Unit | LFTBH160 | LFTBH180 | LFTBH200 | LFTBH220 |
| Load Capacity | kg | 1000 | |||
| Working width | mm | 1600 | 1800 | 2000 | 2200 |
| Working Depth | mm | 1000 | |||
| Working Height | mm | 600 | |||
| Overall Width | mm | 1706 | 1906 | 2106 | 2306 |
| Overall Length | mm | 1335 | |||
| Overall Height | mm | 932 | |||
| Hitch Category | CAT-I & CAT-II | ||||
| Cylinder Type | Double Acting Cylinder | ||||
| Cylinder Capacity | ton | 3 | |||
| Power Req. | hp | Above 45 | |||
| Weight Approx | kg | 310 | 330 | 350 | 390 |
