Home / Residue Management / Straw Reaper / Straw Reaper Samrat

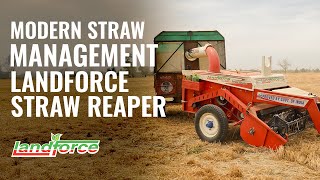

The Landforce Straw Reaper Samrat is designed for effective residue management by cutting, threshing, and cleaning straw in one go. Its robust build and high efficiency ensure cleaner fields and better soil preparation.
Belt-driven mechanism ensures smooth operation, efficient power transfer, and reduced maintenance.
Show More
Equipped with a robust crown & pinion gearbox for smooth power transmission and reliable performance.
Show More
Designed for 55 HP & above tractors, ensuring powerful and efficient straw reaping performance.
Show More
High-quality powder-coated finish provides superior protection against rust, wear, and harsh working conditions.
Show More| Model | Unit | LFSRS57 | LFSRS60 | LFSRS63 |
| Cutter Bar working Width | inch/mm | 87/2210 | 93/2363 | 99/2515 |
| No. of Fingers | No. | 15 | 16 | 17 |
| Auger Width | inch/mm | 86/2185 | 92/2337 | 98/2490 |
| Auger Scoop | 22 | 26 | ||
| Reel Type | Tyne Bar | |||
| No. of Tyne | No. | 70 | 75 | 80 |
| Threshing Drum Dia | mm | 750 | ||
| No. of Blades | No. | 288 | 304 | 320 |
| Threshing Drum RPM | rpm | 720-750 | ||
| Lower Basket No. of Blade | No. | 35 | 37 | 39 |
| Upper Basket No, Blade | No. | 18 | 19 | 20 |
| No. of Blower | No. | 2 | ||
| Blower Width | inch/mm | 9/229 | 10/254 | |
| No. of Blade per Farn | No. | 4 | ||
| Tyre size | 7:00-19 | |||
| Length | inch/mm | 143/3632 | ||
| Width | inch/mm | 101.2/2570 | 107/2720 | 113/2870 |
| Height | inch/mm | 80.4/2042 | ||
| Gear Box - Crown & Pinion | No. | 18 teeth | ||
| Weight | kg | 1965 | 2055 | 2125 |
