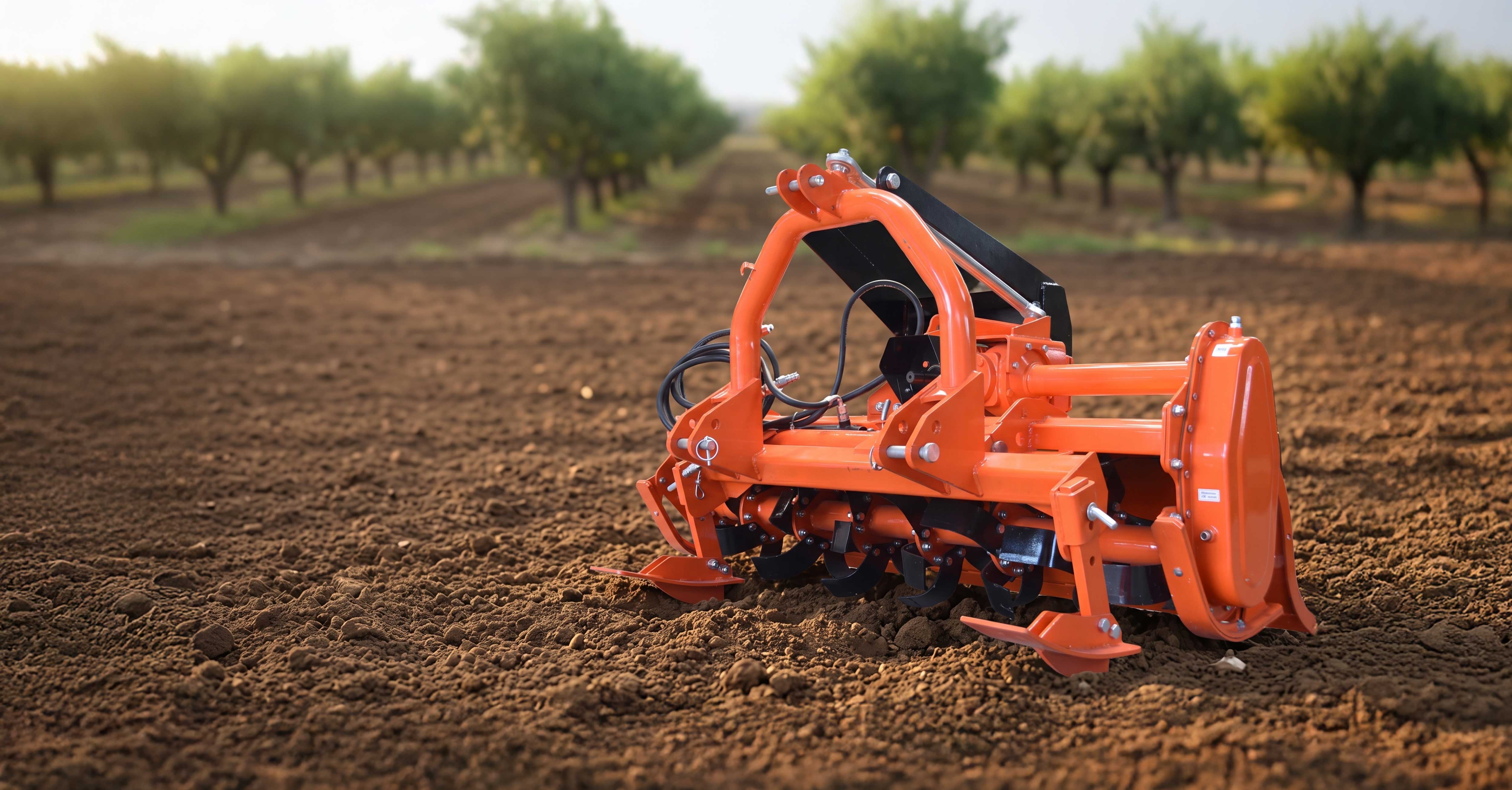

The Landforce Side Shift (Orchard) Rotary Tiller is specially designed for orchard and vineyard operations, allowing easy tillage close to trees and boundaries. Its side-shifting feature ensures efficient soil preparation in tight spaces.
Premium powder-coated body ensures long-lasting protection against rust, corrosion, and wear.
Show More
Cat-II 3-point linkage for strong, stable, and secure attachment with medium to high HP tractors.
Show More
Adjustable rotor speed (180–220 RPM) for consistent soil pulverization and efficient field performance.
Show More
Operates efficiently with 45–60 HP tractors, ideal for medium to large-scale farming operations.
Show More| MODEL | Unit | LFRTK165 | LFRTK185 | LFRTK205 |
| Gear Box | Multi Speed | |||
| Side Transmission | Gear Drive | |||
| Length | mm | 1150 | ||
| Width | mm | 1785 | 2035 | 2285 |
| Height | mm | 1250 | ||
| Working Width | mm | 1600 | 1850 | 2100 |
| Working Depth | mm | UP TO 150 | ||
| Depth Control | Skid Fitted as per standard equipment | |||
| PTO Speed | rpm | 540/1000 | ||
| Rotor Speed | rpm | 180-240 | ||
| Number of Blades | No. | 36 | 42 | 48 |
| Type of Blades | C-Type | |||
| Hitch Category | CAT-II | |||
| PTO Safety Device | Shear Bold Type | |||
| CE Guard Protection | Provided | |||
| Min. Tractor (HP Required) | hp | 45-60 | ||
| Weight w/o PTO (Approx) | kg | 490 | 530 | 560 |
