Home / Residue Management / Straw Reaper / Ranger UL

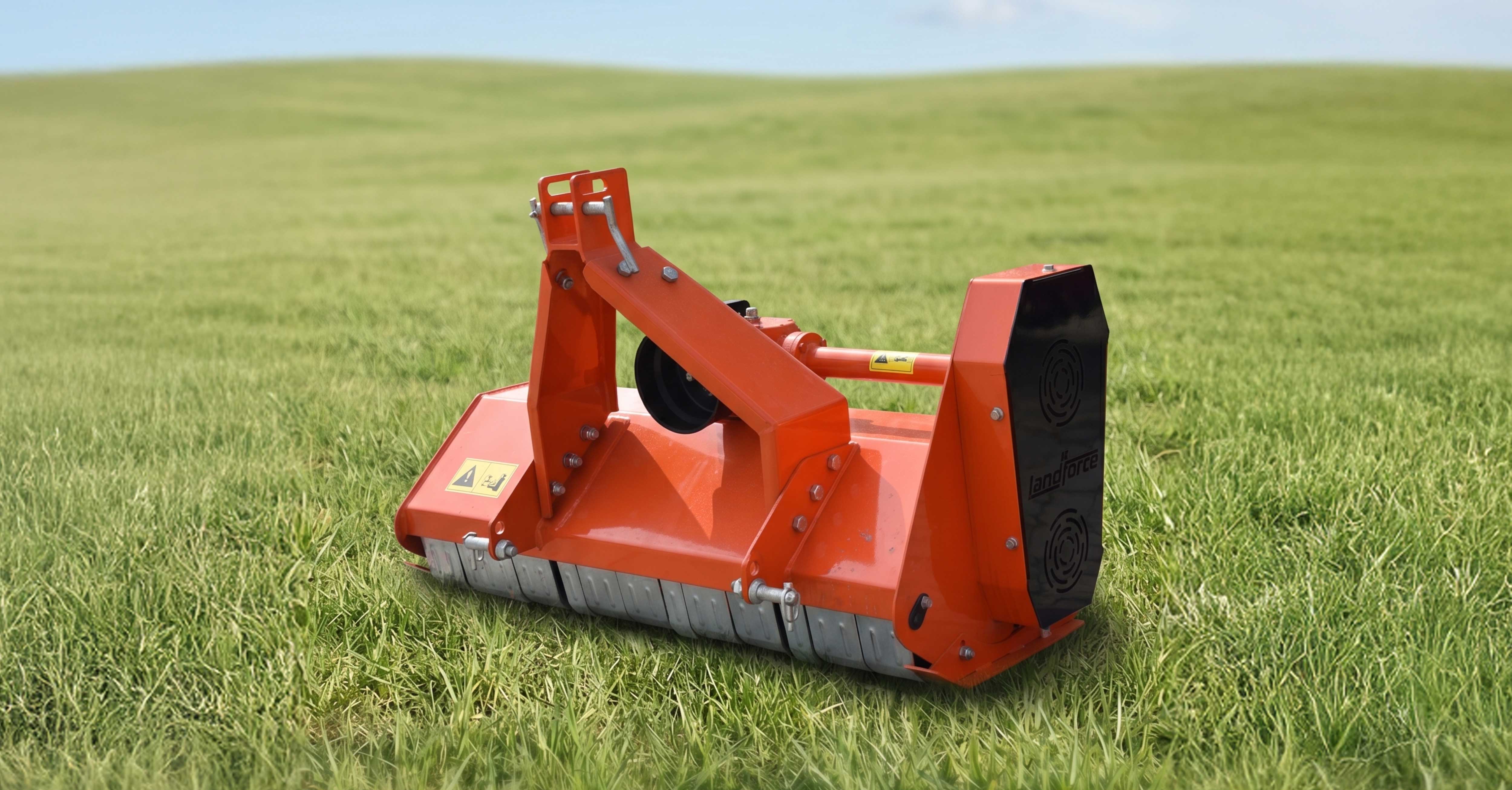

The Landforce Flail Mower Ranger UL (Ultra Light) is designed for light to medium-duty vegetation control with efficient cutting and mulching. Its lightweight structure ensures easy handling and smooth performance on all terrains.
Approx. 130–200 kg weight ensures easy handling, stability, and efficient field operation.
Show More
Designed for Cat-I tractors, ensuring secure attachment and stable field performance.
Show More
Heavy-duty hammer blades ensure efficient cutting, fine shredding, and uniform residue management.
Show More
Compatible with 20–40 HP tractors for smooth and effective shredding performance.
Show More| Model | Unit | LRMUL110 | LRMUL115 | LRMUL130 |
| Gearbox | Single Speed | |||
| Side Transmission | V-Groove Pulleys | |||
| Overall length | mm | 1135 | 1285 | 1435 |
| Overall width | mm | 660 | ||
| Overall height | mm | 800 | ||
| working width | mm | 925 | 1075 | 1225 |
| PTO shaft/clutch | Shear Bolt type | |||
| Belts | 2 V-Belts | |||
| Skids | Fixed | |||
| Rear Roller | Provided | |||
| Finish | Powder Coated | |||
| Rotor tube dia. | mm | 82 | ||
| Rotor swing dia. | mm | 218 | ||
| Rotor RPM | rpm | 540/2025 | ||
| No. of hammers | No. | 28 | 32 | 36 |
| Linkage | CAT-I | |||
| Linkage offset type | NA | |||
| Safety guard | As per CE requirements | |||
| Tractor HP Req. | hp | 15-25 | 20-40 | |
| Weight | kg | 170 | 180 | 190 |
