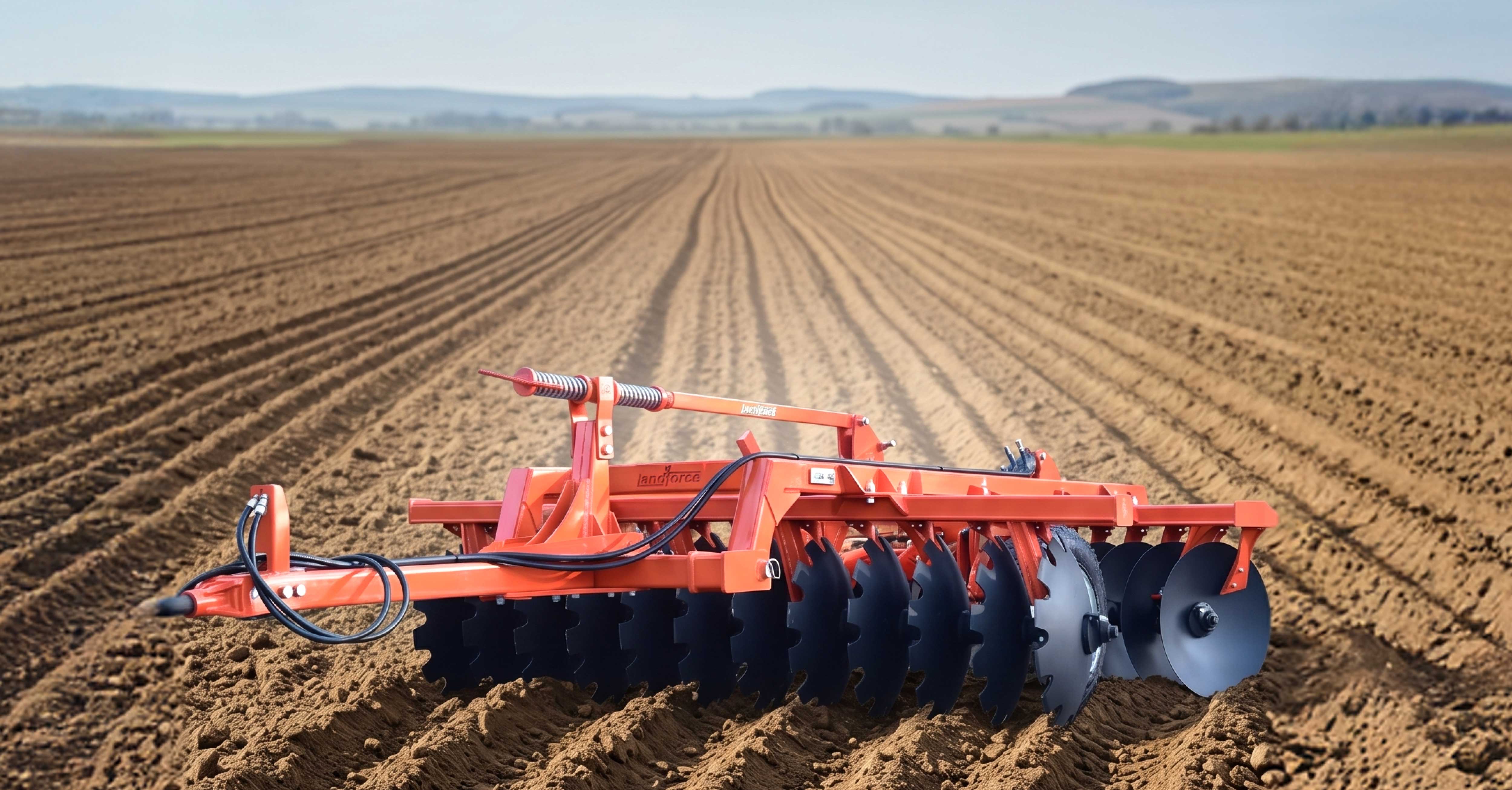

The Landforce Disc Harrow Hydraulic Heavy is built for powerful performance in hard and dry soils. Its robust frame, heavy discs, and hydraulic control ensure deep tillage, smooth operation, and maximum field efficiency.
Provides superior resistance against rust, wear, and harsh field conditions for long-lasting durability.
Show More
Ensures a secure fit with Cat-II tractors for stable and efficient field performance.
Show More
Ensures efficient cutting, proper soil mixing, and a smooth, uniform field finish.
Show More
Designed to perform smoothly with tractors from 75 to 180 HP.
Show More| MODEL | Unit | LFDHHH18 | LFDHHH20 | LFDHHH22 | LFDHHH24 | LFDHHH28 | LFDHHH30 |
| Frame | SQ. PIPE 110x110x8mm | ||||||
| Gang Axle | mm | 40 mm (Solid Rod) | |||||
| No. of Discs | No. | 18 | 20 | 22 | 24 | 28 | 30 |
| Type of Disc | Boron Steel, Notched Discs on Front & Plain Discs on Rear | ||||||
| Disc Size | mm | 660x6 | |||||
| Gang Adjustment | 3 Positions available on both front & rear gangs | ||||||
| Working Width | mm | 2100 | 2300 | 2500 | 2780 | 3180 | 3480 |
| Disc Spacing | mm | 228 | |||||
| No. of Bearing Hubs | No. | 8 | 8 | 8 | 8 | 8 | 10 |
| Tyre Size | 10.00/75-15.3 | ||||||
| Hitch Category | CAT-II | ||||||
| Tractor HP Req. | hp | 75-90 | 90-130 | 140-165 | 150-180 | ||
| Weight | kg | 1830 | 1910 | 1960 | 1990 | 2190 | 2630 |
